Esko Kongsberg BLD-SF421 Carbide Flat Oscillating Blade for Corrugated |Manufacturer of Carbide Knives & Blades

Esko Kongsberg Bld-Sf421 Flat Oscillating Knife Blade For Kongsberg Digital Cutting Machine G4245825

Constructed from tungsten carbide for superior wear resistance and durability

Dual cutting angles: 63° and 84° for flexible cutting needs

Maximum cutting depth: 17.2 mm, ideal for thick substrates

Multi-material capability: corrugated cardboard, corrugated plastic, felt, foam board, folding carton, magnetic foil, polyester fabric, rubber

Flat oscillating / pointed design for precise and versatile cutting

Reliable replacement for Esko Kongsberg CNC systems

Request A Quote

Description
Related Products

BLD-SF421 Tungsten Carbide Flat Oscillating Blade for Esko Kongsberg Digital Cutters

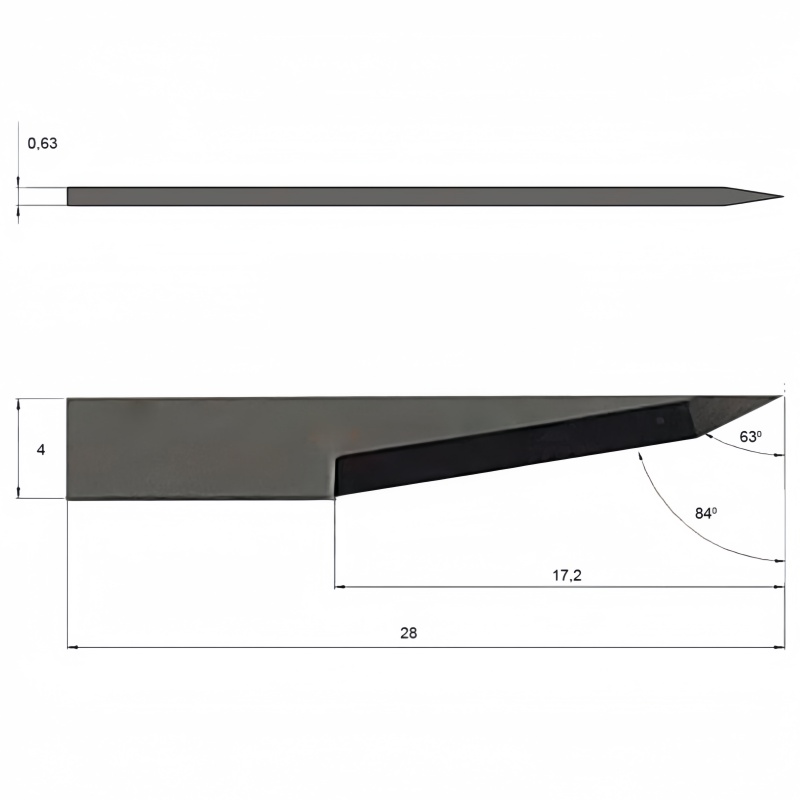

Technical Specifications

Parameter	Value
Model	BLD-SF421
Blade Type	Flat Oscillating / Pointed Blade
Material	Tungsten Carbide
Max Cutting Depth	17.20 mm
Blade Height	28.00 mm
Blade Width	4.00 mm
Thickness	0.63 mm
Angle	63° / 84°
Replacement	Yes
Compatible Systems	Esko Kongsberg CNC Machines

The BLD-SF421 flat oscillating blade is a premium tungsten carbide cutting tool designed for Esko Kongsberg digital cutting machines. With dual cutting angles of 63° and 84° and a maximum cutting depth of 17.2 mm, this blade delivers high-precision cuts across a wide range of materials, from corrugated cardboard and foam boards to fabrics and magnetic foils.

It is a reliable replacement blade, providing long-lasting durability, precise edges, and versatility for high-volume industrial applications.
