Esko Kongsberg Bld-Sf217 Tungsten Carbide Oscillating Knife Blade For Kongsberg Cutting Tables G42441220

Tungsten carbide flat blade (0.63 mm)

Compatible with **Esko Kongsberg cutting systems

Suitable for drag & oscillating cutting tools

65° cutting angle for thicker materials

Maximum cutting depth 12 mm

Request A Quote

Description
Related Products

Kongsberg BLD-SF217 Flat Drag & Oscillating Knife Blade

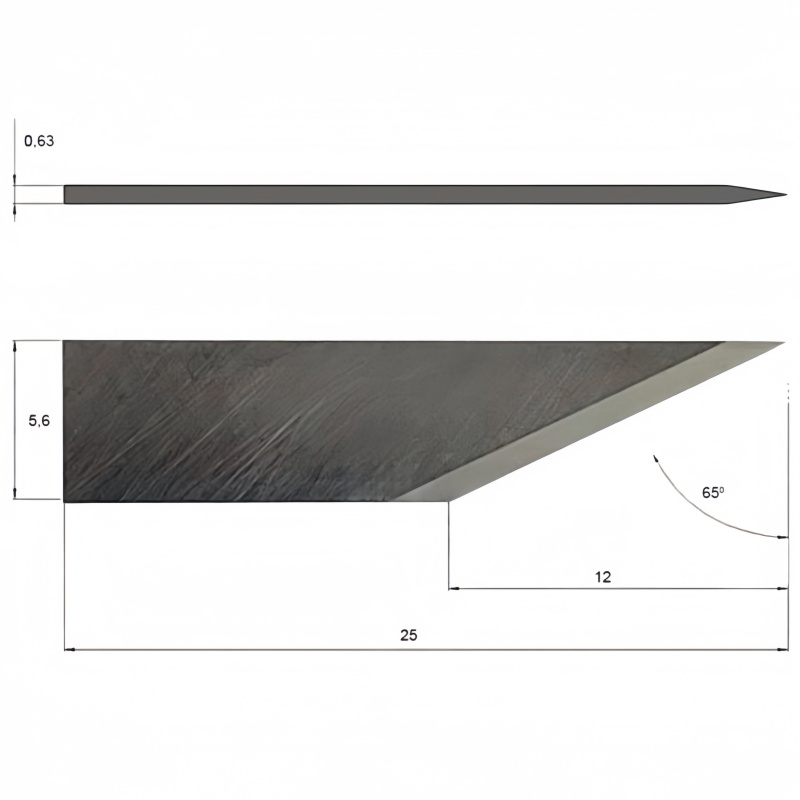

Technical Specifications

Specification	Details
Model	BLD-SF217
Reference	G42441220
Compatible System	Esko Kongsberg
Blade Type	Flat Drag / Oscillating Blade
Knife Height	25 mm
Width	5.6 mm
Thickness	0.63 mm
Mounting	Flat 0.63 mm
Angle	65°
Max Cutting Depth	12 mm
Material	Tungsten Carbide
Replacement	Yes

Product Description

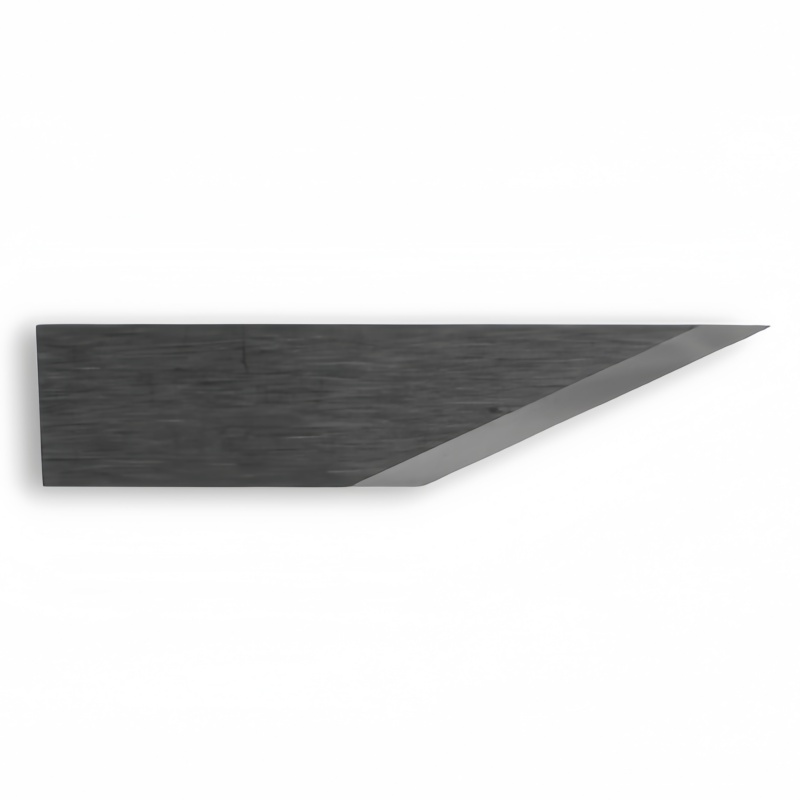

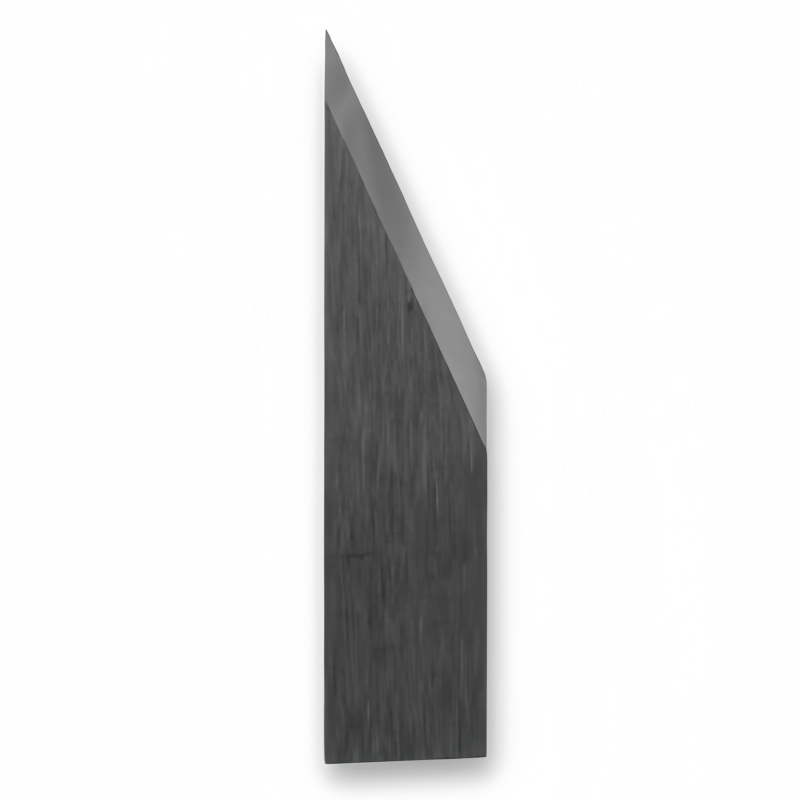

The BLD-SF217 flat knife blade (G42441220) is designed for versatile cutting on Esko Kongsberg digital cutting systems.

This tungsten carbide flat blade features a 0.63 mm thickness flat mounting and a 65° cutting angle, making it ideal for both drag cutting and oscillating cutting tools, especially when working with thicker materials.

With a maximum cutting depth of 12 mm and 25 mm blade height, the blade is suitable for cutting folding carton, PVC sheets, polyester fabric, vinyl films, magnetic foil and gasket materials in packaging production, signage manufacturing and industrial processing.

The BLD-SF217 blade offers powerful cutting capability, excellent durability and stable performance across a wide range of applications.
